◆性能規(guī)范
|
產品型號 |
公稱壓力 |
試驗壓力
|
工作壓力 |
工作溫度 |
適用介質 |
||||
|
體強度密封 |
密封 |
P54 |
P55 |
P57 |
|||||
|
J961H/Y-100 |
10 |
15 |
11 |
/ |
/ |
/ |
≤425 |
水、蒸汽、油品 |
|
|
J961H/Y-200 |
20 |
30 |
22 |
/ |
/ |
/ |
|||
|
J961H/Y-250 |
25 |
38 |
28 |
/ |
/ |
/ |
|||
|
J961H/Y-320 |
32 |
48 |
36 |
/ |
/ |
/ |
|||
|
J961V-P54/100V |
/ |
30 |
22 |
10 |
/ |
/ |
≤540 |
蒸汽 |
|
|
J961Y-PS4/140V |
/ |
38 |
28 |
14 |
/ |
/ |
|||
|
J961Y-PS4/170V |
/ |
48 |
36 |
17 |
/ |
/ |
|||
|
J961Y-P55/100V |
/ |
38 |
28 |
/ |
10 |
/ |
≤550 |
||
|
J961Y-PSS/140V |
/ |
48 |
36 |
/ |
14 |
/ |
|||
|
J961Y-PSS/170V |
/ |
53 |
39 |
/ |
17 |
/ |
|||
|
J961Y-PS7/100V |
/ |
48 |
36 |
/ |
|
10 |
≤570 |
||
|
J961Y-PS7/140V |
/ |
55 |
40 |
/ |
/ |
14 |
|||
|
J961Y-PS7/170V |
/ |
60 |
44 |
/ |
/ |
|
|||

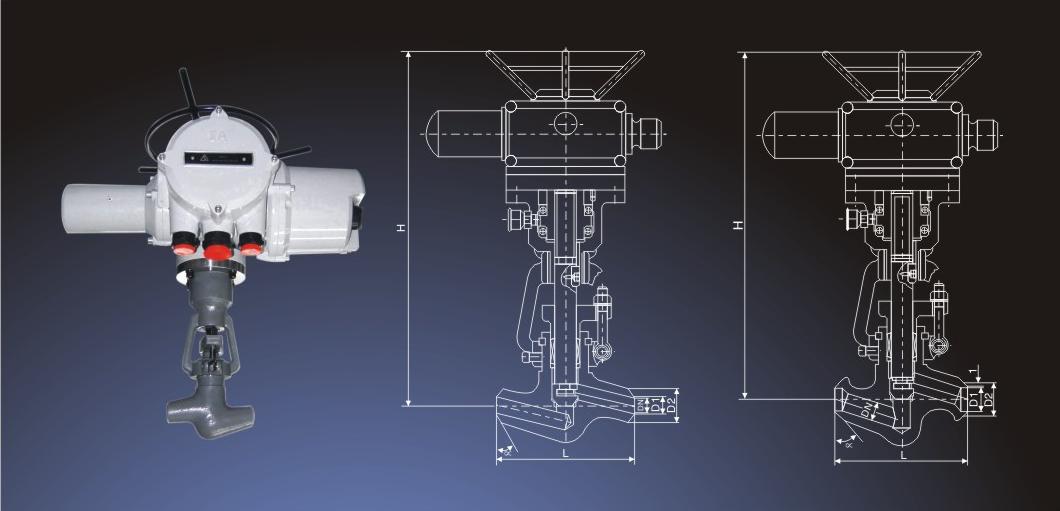

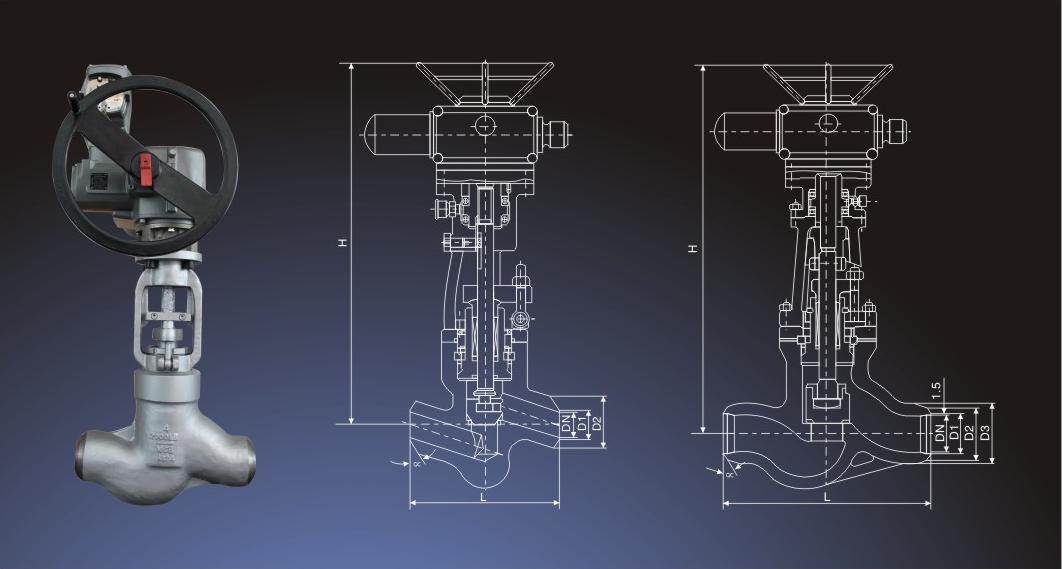

◆主要外形連接尺寸
|
DN(mm) |
L |
D1 |
D2 |
D3 |
a |
H |
|
J961H/Y-100、200、250、320 J961Y-P54/100V、P54/140V、P54/170V |
||||||
|
15 |
150 |
17 |
36 |
/ |
37.5° |
518 |
|
20 |
135 170 |
22 |
42 |
/ |
37.5° |
518 |
|
25 |
135 170 |
26 |
42 |
/ |
37.5° |
518 |
|
32 |
170 180 |
31 |
44 |
/ |
37.5° |
560 |
|
40 |
230 |
38 |
60 |
/ |
37.5° |
545 |
|
50(1) |
250 |
50 |
82 |
/ |
32° |
728 |
|
50(2) |
320 350 |
50 |
82 |
/ |
32° |
748 |
|
65 |
370 260 |
69 |
100 |
110 |
32° |
829 |
|
80 |
400 430 470 |
84 |
108 |
130 |
32° |
898 |
|
100 |
455 560 |
107 |
144 |
165 |
32° |
913 |
|
J961Y-P55/100V、P55/140V、P55/170V、J961Y-P57/100V、P57/140V、P57/170V |
||||||
|
15 |
150 |
17 |
40 |
/ |
37.5° |
518 |
|
20 |
135 170 |
22 |
46 |
/ |
37.5° |
518 |
|
25 |
135 170 |
26 |
46 |
/ |
37.5° |
518 |
|
32 |
170 180 |
31 |
49 |
/ |
37.5° |
560 |
|
40 |
230 |
38 |
60 |
/ |
37.5° |
545 |
|
50（1） |
250 |
50 |
90 |
/ |
32° |
728 |
|
50（2） |
320 350 |
50 |
90 |
/ |
32° |
748 |
|
65 |
370 260 |
69 |
104 |
115 |
32° |
829 |
|
80 |
400 430 470 |
84 |
110 |
140 |
32° |
898 |
|
100 |
455 560 |
107 |
148 |
170 |
32° |
913 |
